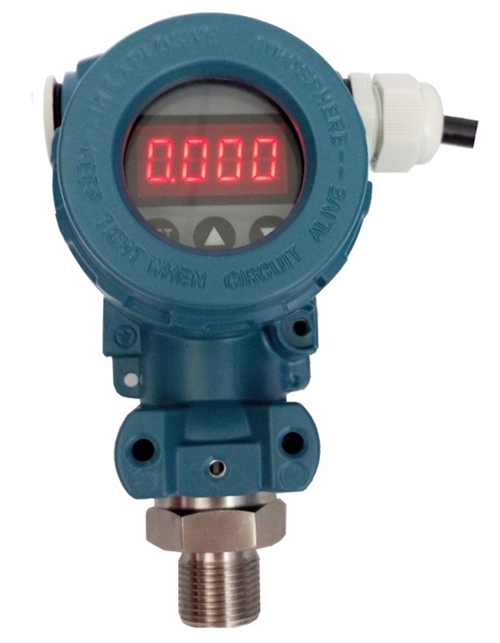

HR3288 HART Smart Pressure Transmitter

The HR3288 protocol Smart Pressure Transmitter is a high-precision, high-stability, multi-parameter, four and a half digits LCD display for intelligent pressure measurement products. It conforms to HART protocol. The users could manage, adjust or monitor the process variables by HART communicator, and it could also be configurated by key-press at local working place.
The pressure transmitter uses the most advanced digital technique, temperature compensation, linearity correction and reliable ex-proof construction for production. pressure transmitter has high accuracy, wider temperature compensation range and standard signal output to measure flow pressure precisely.

The product works in a two-wire mode and can be directly replaced analog two-wire 4mA-20mA DC output transmitter. Digital communication with manual operator. Electromagnetic radiation fits IEC801 standard.

Digital error correction

Local key operation, easy configuration

Anti-surge, electromagnetic interference

Local and long-distance zero, range adjustment

Digital compensation and non-linearity correction

Reverse power protection, over voltage protection

Product related

Download: 点击下载
Brand : 恒瑞HighReach
Model : HR3288 HART
Mailbox : highreach@hr-tool.cn
Phone : 0917-3208995

Technical Parameters

Main performance indicators
Range	-0.1～0～0.01～100MPa
Accuracy	4～20mA：±0.25%（typ.）， ±0.5% F·S（max.）
Accuracy	HART protocol：±0.1％
Long-term stability	0.1%F·S/year
Overload capability	1.5X F·S
Load	(U-12)/0.02（Ω）
Pressure type	Gauge pressure (atmospheric reference), absolute pressure, gauge pressure (sealed reference)
Temperature characteristics
Compensation temperature	-10～80℃
Operating temperature	-20～85℃
Zero temperature drift	0.03%F.S/℃（≤100KPa）0.02%F.S/℃（>100KPa）
F. S temperature drift	0.03%F.S/℃（≤100KPa）0.02%F.S/℃（>100KPa）
Storage temperature	-40～125℃
Electrical characteristics
Power supply	DC12～30V （ typ. 24V）
Power protection	Anti-reverse connection, over voltage protection
Output method	Two-wire system 4～20mA，4～20mA+HART（Optional）
Output method	LCD display + three buttons
Damping	0～32 second
Structural characteristics
Measuring medium	Compatible with stainless steel and fluoro rubber
Pressure interface	M20*1.5male
Housing material	316L stainless steel
Cable material	Polyurethane or PVC optional
Environmental characteristics
Protection level	IP65
Explosion-proof grade	ExiaⅡC T6
Insulation	100MΩ@50V
Vibration	20g, 20～5000Hz
Shock	20g, 11ms
