HRTU8101 GPRS/GSM Micro-power Measurement Terminal

HRTU8101 GPRS/GSM Micro-power Measurement Terminal is a water-proof measurement and controlling device. Using high performance lithium battery it can collect the output signals of various instruments and transmitters and transmit data remotely through GPRS or short message. It is especially suitable for monitoring sites without power supply conditions and harsh environment. It is widely used in water supply water conservancy agriculture geology environmental protection and other industries.

Integrated with data collection and transmission

Support battery solar energy commercial power supply

IP68 protection water proof moisture proof and anti-soak

Support customer self-built system and configuration application

Support serial port remote working parameters setting check data on site

Product related

  • Download: 点击下载
  • Brand : 恒瑞HighReach
  • Model : HRTU8101
  • Mailbox : highreach@hr-tool.cn
  • Phone : 0917-3208995

Technical Parameters

Specification
Hardware configuration: 6-way DI/PI 2-way AI 1-way serial port; LCD display 4-button keypad optional

Remark of 1-way serial port:
When the terminal is connected to the serial device RS232 can collect up to 14 serial devices of a serial port. RS485 can connect multiple serial devices up to 14. For example each serial device collects two volumes of traffic and pressure so you can connect 7 serial devices. If each serial device collects 7 volume you can connect 2 serial devices.
·Communication error:≤10-6
·Storage: 4M
Power supply: battery powered: 10V ~ 28V DC; solar or commercial power supply: 12V DC
·Battery life: 1 to 5 years (related to the frequency of data transmission)
Power consumption: standby current ≤ 50uA / 14.4V; collecting current ≤ 5mA / 14.4V; transmission average current ≤ 10mA / 14.4V
·Installation Method: wall-mounting
·Outline dimension: 229x179x69mm

Related parameters

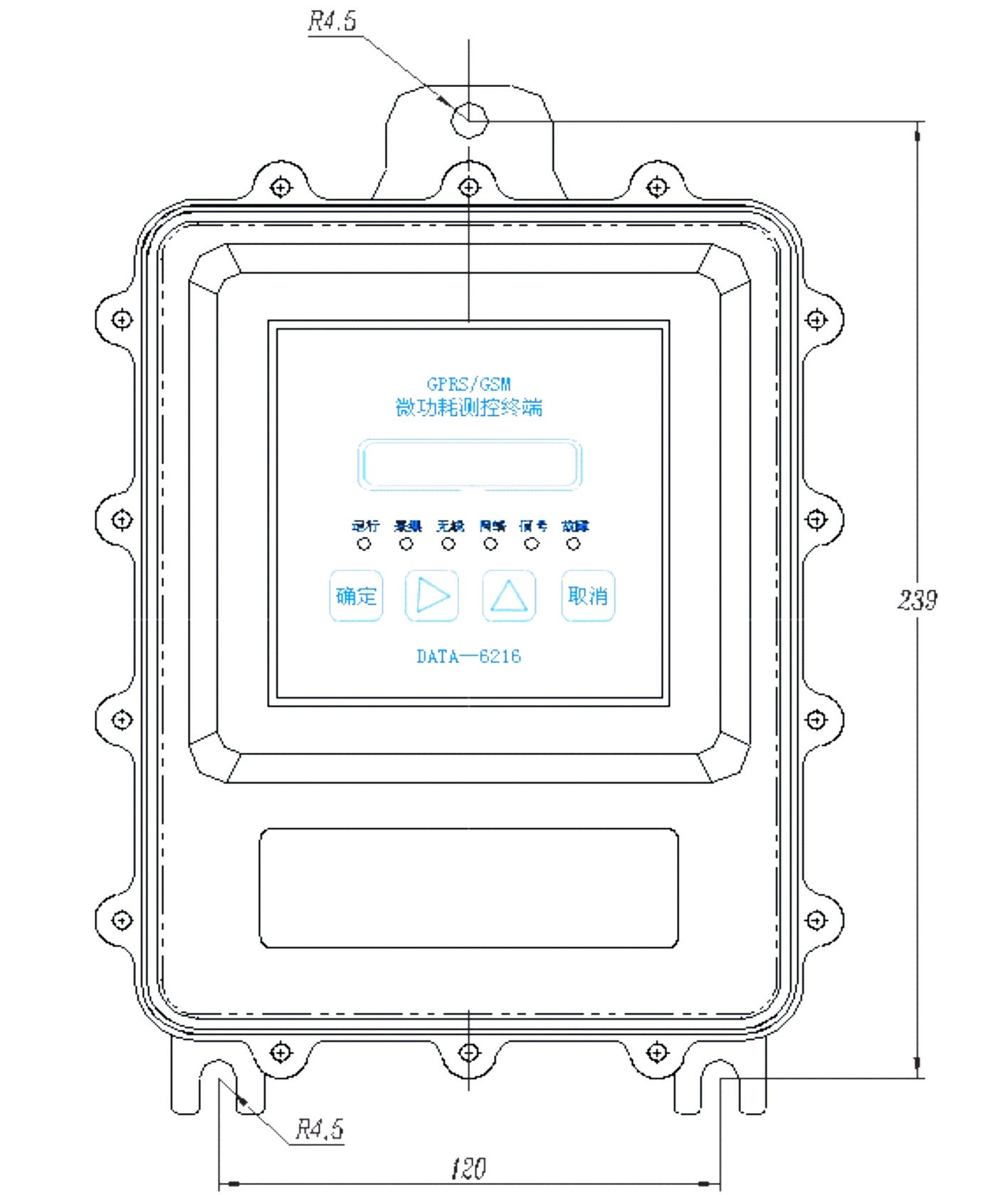

HRTU8101型GPRS GSM微功耗测控终端结构尺寸
