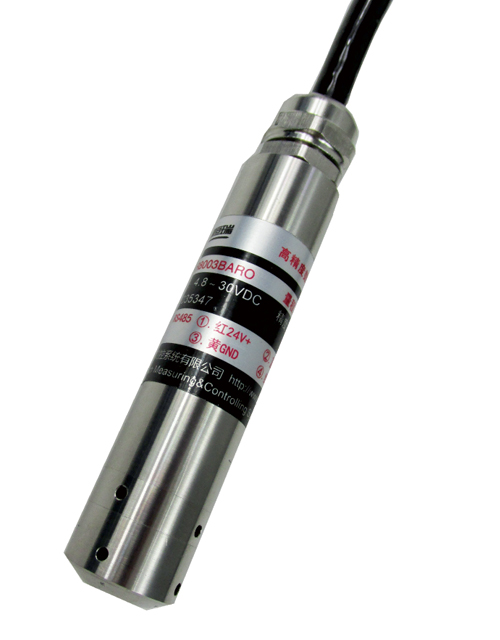

HR8003BARO High Precision Atmosphere Gauge

HR8003BARO is high precision digital atmosphere gauge, with build-in digital pressure sensor, with the features of high integration, low power dissipation and long term stability.
It is widely used in atmosphere measurement of industry process, weather, hydrology and water conservancy, geological prospecting and etc.

High quality and stability digital sensing elements

Integral measurement of pressure and temperature

FS digital calibration and temperature compensation

RS485 interface and MODBUS-RTU standard protocol

Reverse power protection, over voltage protection

Full stainless steel sealed construction, IP68 protection

Product related

Download: 点击下载
Brand : 恒瑞HighReach
Model : HR8003BARO
Mailbox : highreach@hr-tool.cn
Phone : 0917-3208995

Technical Parameters

Main Specification
Range	30KPa～110KPa
Accuracy	＜±0.05% F·S
Long-term stability	＜0.05%F·S/year
Temp. Sensor (Integrated build-in pressure sensor )	Range：-40～85℃
Temp. Sensor (Integrated build-in pressure sensor )	Accuracy：±0.8℃
Temperature characteristics
Compensation temp.	-40～85℃
Operating temp.	-40～85℃
Storage temp.	-40～125℃
Electrical characteristics
Power Supply	DC5～30V （typ.24V）
Power Protection	Anti-reverse connection, over voltage protection
Output method	RS485/MODBUS-RTU protocol Load capacity：128个nodes
Structural characteristics
Measuring medium	Air
Housing material	SS 316L
Cable material	Polyurethane or PVC optional
Cable	Φ6.3mm，1m default length or customize
Environmental characteristics
Protection level	IP68
