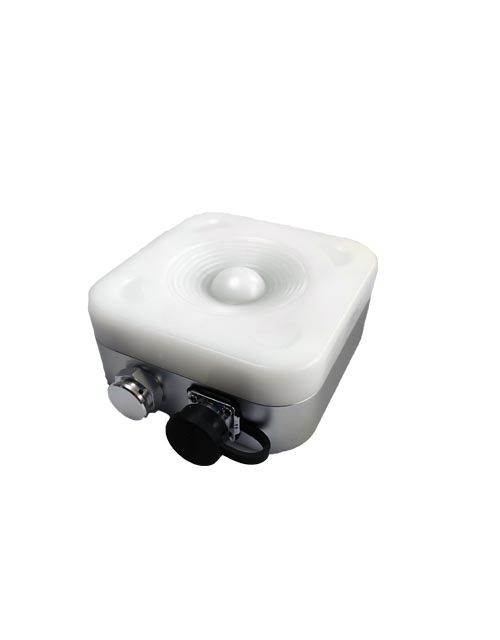

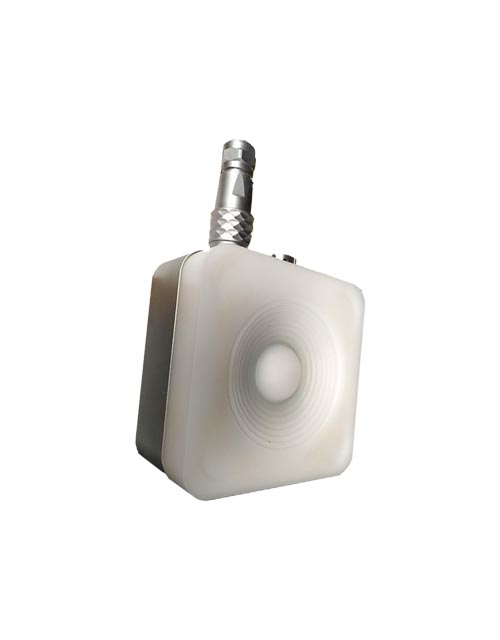

HR7311 Radar Water Level Gauge

HR7311 is a small-scale, low-power radar water (liquid) level meter that can be used for non-contact liquid level measurement of surface (or pipeline) water; HR7311 adopts pulse coherent radar (PCR) technology, using 60G millimeter radar waves as carrier signals, and achieves millimeter level measurement accuracy through complex signal recognition algorithms.

The optimized wave cancellation filter design makes the measurement results more accurate and stable. Compared to traditional pulse radar level gauges, they have higher measurement accuracy, lower power consumption, and ultra-small volume; It is a cost-effective radar level gauge and during measurement cannot be affected by temperature gradients, air pressure, water vapor, water pollutants, and sediment .

A 60GHz range detector based on the working principle of microwave radar.

Continuous pulse detection, stable operation of 24/7, measurement error less than ± 5mm.

High-end signal processing technology can adapt well to water surface fluctuations and further avoid errors

Non-contact detection, good directivity, low transmission loss, and wide application range.

Patch antenna (40 °× 80 °), with a lens the size can be (11 °× 11 °).

Approximately 10 measurements per second, effectively eliminating the effects of surface waves and instrument vibrations

Product related

Download: 点击下载
Brand : 恒瑞HighReach
Model : HR7311
Mailbox : highreach@hr-tool.cn
Phone : 0917-3208995

Technical Parameters

Main Performance Specification
Transmission Frequency	60.5GHz
Transmission Power （EIRP）	10dBm
Antenna Type *	Anttane-on-chip(with lens)， 11°× 11°
Working Voltage	+7~28V DC
Working Current	12V working voltage supply Working Current under Working Mode ≤ 15mA Working Current under Low-Consumption (Sleep) Mode≤ 0.3mA
Communication Interface *	RS-485
Data Format	9600（Default）,8,n,1；Adjustable baud rate
Response Time	100 ~ 5000ms，default 5000ms
Measurement Interval	1 ~ 480min，default 1min
Measurement Accuracy	≤±5mm
Measurement Range	0.05~7m
Resolution	1mm
Size	92×92×40（mm）
Protective Grade	IP68
Housing Material	Front cover: POM, rear cover:aluminum alloy

Related parameters

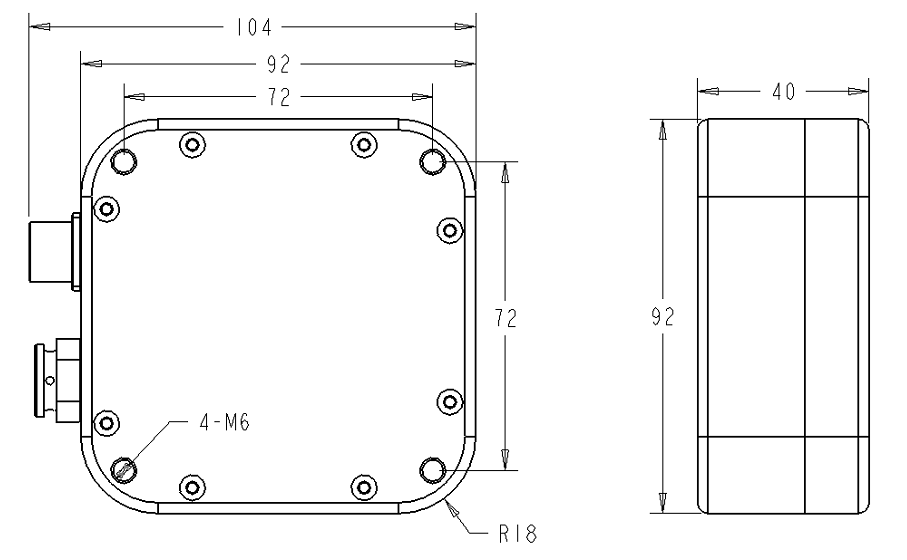

Dimensional structure(Unit:mm)


Application Fields

The product is mainly used for on-site water level data collection. The collected data can be transmitted to the upper computer or server through a communication interface and wireless device. Therefore, this product is often used as a measuring terminal for remote monitoring systems.

The product has low-consumption and is very energy-efficient. It can be powered by solar energy when continuously detecting in the field.

Application:

1) For water level monitoring of rivers, lakes and other natural waters, a monitoring network will be established through monitoring points to achieve linkage early warning in flood season.

2) Water level monitoring in reservoirs, sewage channels, and other storage areas for internal operation regulation.
