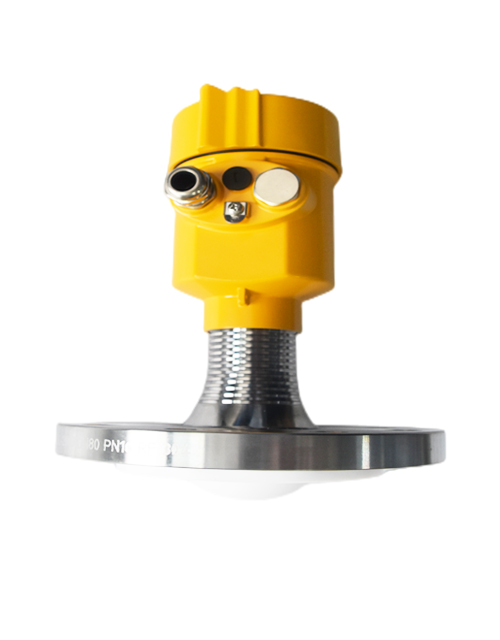

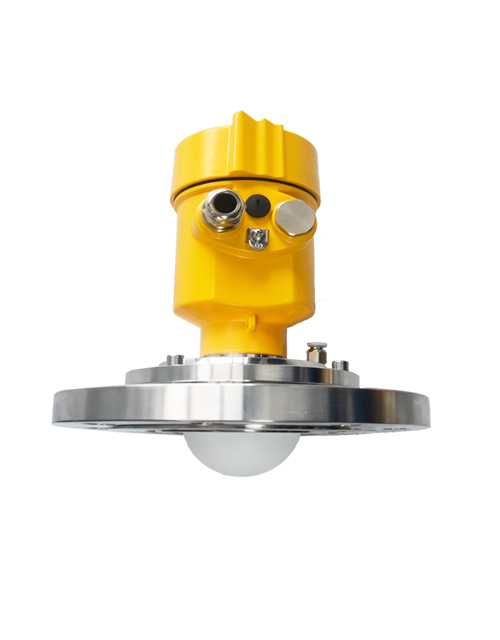

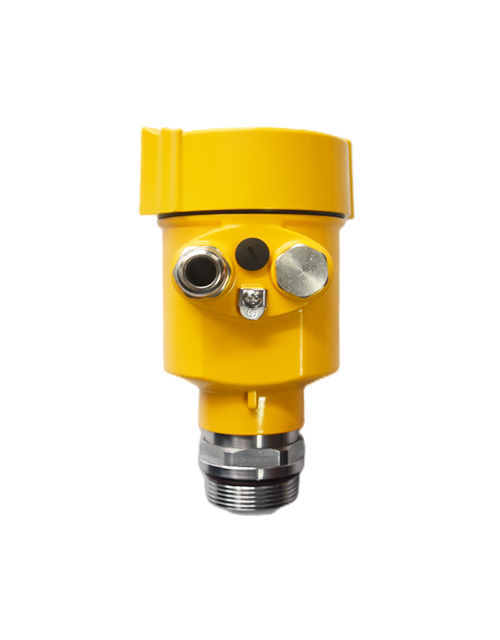

HR730 Series 80GHz Radar Level Meter

The HR730 series 80GHz Radar Level Meter refers to the products which work at a frequency modulated continuous wave (FMCW) of 76-81GHz and support four-wire and two-wire applications. There are multiple models of this series, with a blind zone up to 8cm and a range up to 120m. Based on self-developed CMOS millimeter wave RF chips,the products can achieve a more compact RF architecture, higher signal-to-noise ratio, and smaller blind zones. Fearless of the attenuation of radar echoes by steam and dust; Stable measurements can still be achieved for materials with weak reflection characteristics or low dielectric constants.



HighReach self-developed CMOS millimeter wave RF chips achieve a more compact RF architecture;

The 5GHz working bandwidth enables the product to have higher measurement resolution and accuracy;

The minimum antenna beam angle is 3°, and the interference in the installation environment has a smaller impact on the instrument;

Shorter wavelength, better reflection characteristics on solid surfaces, greatly reducing dependence on universal flanges;

Support remote debugging and upgrading, which can reduce waiting time and improve work efficiency;

Support Bluetooth debugging for mobile phones, making it easy for on-site personnel to maintain.

Product related

  • Download: 点击下载
  • Brand : 恒瑞HighReach
  • Model : HR7303/4/5
  • Mailbox : highreach@hr-tool.cn
  • Phone : 0917-3208995

Technical Parameters

Main Performance Specification

Transmission frequency

76GHz81GHz

Measurement Range

10m20m30m60m120m

Measurement Accuracy

±1mm

Measurement Interval

Max speed 100ms

Beam Angle

3°/8°/20°

Dielectric Constant Range Used

2

Power Supply Range

1228.0V DC

Communication method

MODBUSHART

Signal Output

420mA or RS-485

Fault Output

3.8mA4mA20mA21mAMaintain

On-site operation/programming

128×64 Dot matrix display screen/4 buttons; Configurable upper computer setting software

Process temperature/humidity

T0:-4085/humidity95%RHT1:-40260℃;T2:-401000℃;

Housing material

Aluminum alloy&Stainless steel

Process Connection Type

Pipe thread/universal flange/anti-corrosion flange/sanitary chuck/quartz isolation flange

Process pressure

-0.12MPa

Size

φ125*270mm

Cable Entry

M20*1.5


Related parameters

Dimensional structure(Unit:mm)

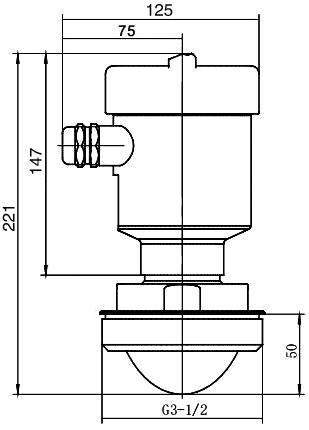

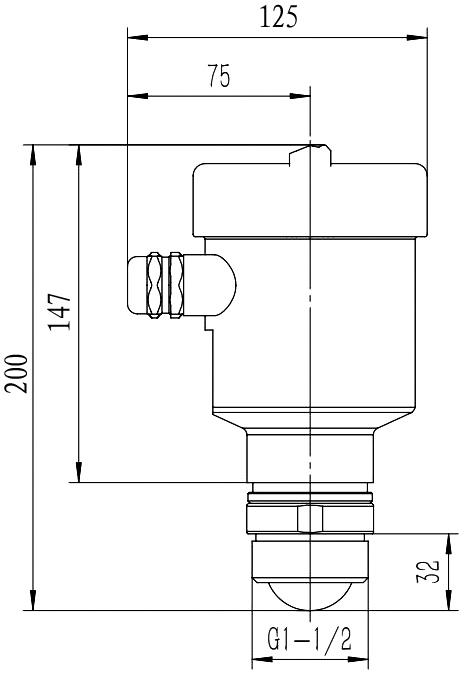

v>  Schematic diagram of the connection structural dimensions of the normal temperature pipe threaded




v>  Schematic diagram of the connection structural dimensions of the normal temperature pipe threaded




A

B

C

H

DN80

φ200

φ160

8-φ17

18

DN100

φ220

φ180

8-φ17

18

DN125

φ250

φ210

8-φ18

18

DN150

φ280

φ240

8-φ20

20

DN200

φ340

φ295

8-φ20

20

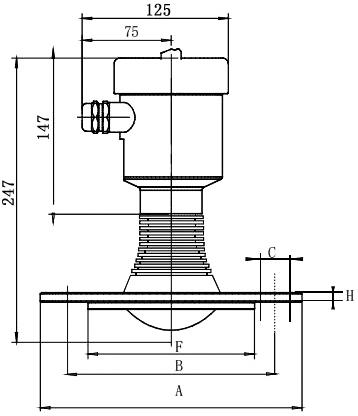

Note: Schematic diagram of the structural dimensions of the universal flange at room temperature with a minimum DN80 3 ° beam angle




A

B

C

F

H

DN80

φ200

φ160

8-φ17

Φ138

18

DN100

φ220

φ180

8-φ17

Φ158

18

DN125

φ250

φ210

8-φ18

Φ188

18

DN150

φ280

φ240

8-φ20

Φ212

20

DN200

φ340

φ295

8-φ20

Φ268

20

3°Schematic diagram of structural dimensions of beam angle high-temperature (-40... 260 ) anti-corrosion flange
