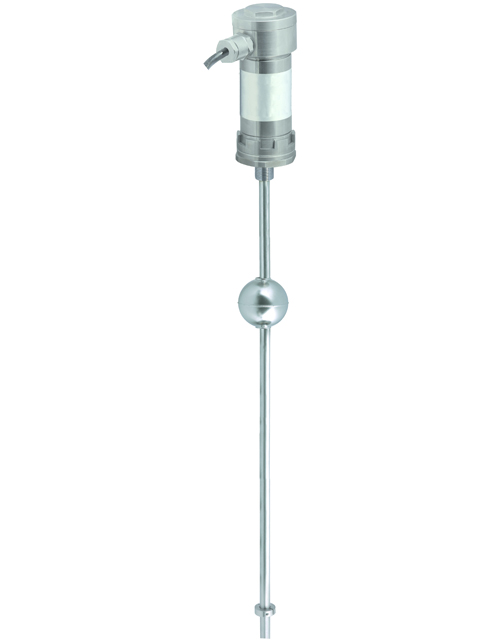

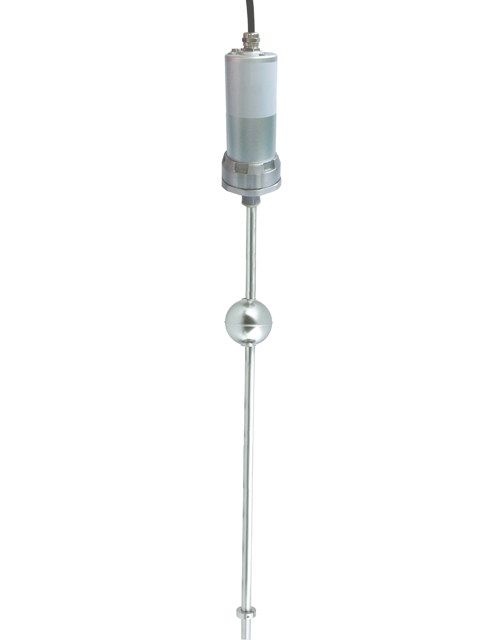

HR9200 magnetostriction level gauge

HR9200 magnetostrictive level transmitter is a new generation product developed by us using magnetostrictive principle combining with advanced digital and analog circuits. It has high measurement accuracy stable and reliable operation and can be displayed on-site by LCD meter. It has compact structure easy installation strong resistance to power supply interference and environmental interference and has great flexibility in use and strong environmental applicability.

High measurement accuracy

Stable and reliable work

LCD display on-site display

Sophisticated structure

easy installation

Anti-power interference

Product related

Download: 点击下载
Brand : 恒瑞HighReach
Model : HR9200
Mailbox : highreach@hr-tool.cn
Phone : 0917-3208995

Technical Parameters

1.Technical parameter

Measure range	300～5000mm（can customize）
Temperature range	-40～+85℃with meter --20～+70℃
Power supply	+12VDC---+24VDC
Output	Two-wire 4〜20mADC

2.Performance specification

Non linear	Better than ±0.2% FS（below 500mm up to 1mm）
Repeatability error	Better than ±0.01% FS
Resolution	Better than ±0.01% FS
Temp. effect	±0.01% FS /℃
Zero adjustment range	100%FS

3.construction

Bar material	A.0Cr18Ni9（304） B.316L SS(customize)
Housing material	0Cr18Ni9(304)
Connection method	A.threaded joint B.Flange connection
Cable	A.PVC Shielded cable B.Aviation plug C.amphenol connector
Protection level	A.Electronic warehouse IP65 B.bar IP68
Explosion-proof	Intrinsic safety Exia ⅡCT6
