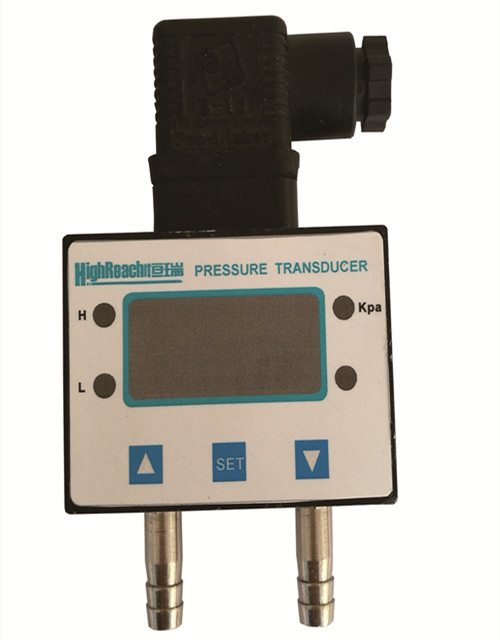

HRDP4200A/P Micro Differential Pressure Transmitter

HRDP4200A/P Low Differential Pressure Transmitter uses sensitive chips and special high-performance conditioning circuits and the measured differential pressure signals are converted into standard electrical signal outputs. HRDP4200A/P Low Differential Pressure Transmitter can be used for lower pressure measure of dry non-conductive and non-corrosive gas measurement. It is widely used in industries such as textiles pharmaceuticals electric power chemicals boilers brewing locomotives and building intelligence and etc.

Use imported sensitive chips

A variety of output signals are available

Two-wire system 4~20mA RS485

Three-wire system 0/1~5V/10V

Dedicated high performance conditioning circuit

Anti-reverse connection over voltage protection

Product related

Download: 点击下载
Brand : 恒瑞HighReach
Model : HRDP4200A/P
Mailbox : highreach@hr-tool.cn
Phone : 0917-3208995

Technical Parameters

Main performance indicators
Accuracy	±0.5%(typ.) ±1% F·S(max.)
Range	0～1kPa--------- 0～10kPa
Long-term stability	1%F·S/year
Overload capability	5 X F·S
Temperature characteristics
Compensation temp.	0～70℃
Working temp.	-10～85℃
Zero temp.drift	0.03%F.S/℃（≤5KPa）0.02%F.S/℃（>5KPa）
FS temp.drift	0.03%F.S/℃（≤5KPa）0.02%F.S/℃（>5KPa）
Storage temp.	-40～125℃
Electrical characteristics
Power Supply	DC12～30V
Power Protection	Anti-reverse connection over voltage protection
Output method	Two-wire 4～20mA
	Three-wire0/1～5V/10V
	RS485
Construction characteristics
Measuring medium	dry non-conductive non-corrosive gas
Pressure interface	Φ8mm PH or customized
Cable material	PVC
Environmental characteristics
Protection level	IP65
Insulation	100MΩ@50V
Vibration	20g 20～5000Hz
Shock	20g 11ms
