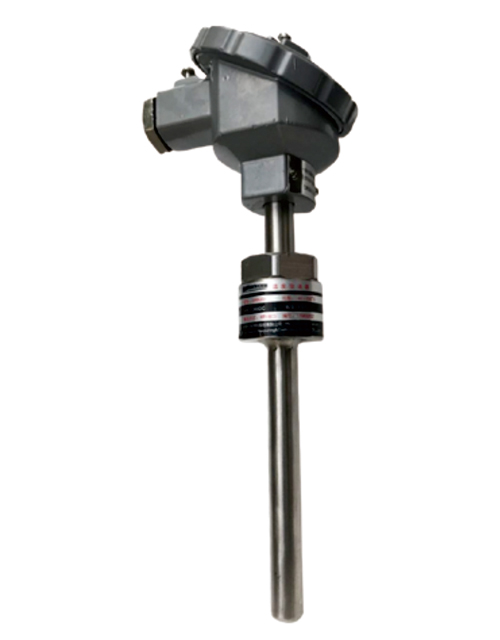

HR6200 Plug-in Temperature Transmitter

HR6200 plug-in temperature transmitter uses imported temperature sensor, which could transform RS485 or 4～20mA standard signal by build-in microprocessor. It adopts 316L stainless steel housing, temperature probe on the front end, we can also customize it for our clients as required.
It can be used in many applications to measure temperature.

High accuracy and precision

5-30V power supply

RS485 standard MODBUS-RTU protocol, anti-reverse connection, anti-surge and over voltage protection

Product related

Download: 点击下载
Brand : 恒瑞HighReach
Model : HR6200
Mailbox : highreach@hr-tool.cn
Phone : 0917-3208995

Technical Parameters

Main performance specification
Accuracy	±0.1℃；±0.2℃
Resolution	0.01℃
Range	-45～150℃
Output frequency	1s
Working temp.	-45～130℃
Storage temp.	-50～150℃
Electrical Specification
Power supply	24VDC（5～30V）
Communication interface Protection	（2KV）surge protection
Load	32 node
Output method	RS485 interface ,MODBUS-RTU protocol
Construction Specification
Housing material	304 or 316L stainless steel
Cable material	PVC or PU
Probe Weight	About 100g
Protection level	IP65

Related parameters

Electric connection

No.	Color	Definition
1	Red	24V+
2	Blue	RS485+
3	Green	RS485-
4	Yellow	GND
