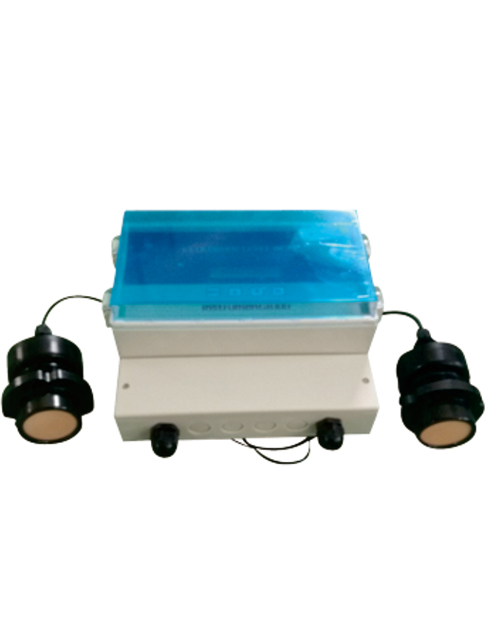

HR9100L ultrasonic level difference meter

1. Stable and reliable: Using high-quality modules including the power supply part; selecting high-stability and reliable devices of the key components which can directly replace imported instruments.
2.Patented technology : our patented sonic intelligent technology software enables intelligent echo analysis without any debugging or other special steps. This technology has the functions of dynamic thinking and dynamic analysis.
3.High precision: The patented acoustic wave technology of our company makes the accuracy of the ultrasonic level gauge greatly improved the liquid level accuracy up to 0.3% and it can resist various interference waves.
4.Low failure rate easy installation and easy maintenance. The instrument is a non-contact instrument that does not directly contact the liquid so the failure rate is low. The instrument is available in a variety of mounting styles. Users can calibrate by manual.
5.Multiple protection / instrument protection level of IP67; all input and output lines are protected against lightning and short circuit.

Pressure: under 3bar

Output signal: 4-20mA

Display: LCD display or with space distance

Power supply: DC24V/AC220V build-in LPS

Digital output:RS485 Modbus or customized protocol

Environment temperature: -20℃--+60℃

Product related

  • Download: 点击下载
  • Brand : 恒瑞HighReach
  • Model : HR9100L
  • Mailbox : highreach@hr-tool.cn
  • Phone : 0917-3208995

Technical Parameters

1. Measure range:0-10m(Each range can be set special can be customized)
2. Dead zone:0.25m-0.5m
3.Accuracy:0.3%
4. Resolution:1mm
5. Pressure: under 3bar
6. Display: LCD display or with space distance
7. Output signal: 4-20mA
8. Digital output:RS485 Modbus or customized protocol
9. Power supply: DC24V/AC220V build-in LPS
10. Environment temperature: -20℃--+60℃

Related parameters

 Specification
  Code
  —□ —□ □□ New Series
Sensor 0       Normal
1       Anti-corrosion
2       Customize
Switch Qty.   0     None
  1     Two
Power supply     D   DC
    A   Special
Measure range       00 0--20m
